The Mechanics of Scribe Marking for Quiet, Quality Part Marks

When manufacturers need durable, high-quality marks without the noise and heat of other marking methods, scribe marking can be an excellent alternative. While not as prevalent as laser and dot peen marking systems, scribe marking technology is often chosen by manufacturers who seek smooth, quiet operation, and deep aesthetic marks, especially on metals.

In this article, we’ll explore how scribe marking works, appropriate use cases, and everything you should know if you’re considering it for your production line.

What Is Scribe Marking?

Scribe marking is a type of impact marking that creates a continuous, engraved line by dragging a hardened stylus across the surface of a part. Scribe markers create deep, ultra-smooth, high-quality marks and provide quieter operations compared to other marking systems.

Manufacturers choose scribe for two primary reasons: when they need aesthetic marks, such as logos, or when they want greater noise control.

How Scribe Marking Works

The mechanics of scribe marking are fairly simple, yet effective. A pneumatic system presses and drags a stylus across the part surface, driven by an X/Y stepper motor that guides the stylus to create letters, numbers, or symbols. The mark depth is controlled by air pressure, as well as the size of the marking head and stylus – typically made of tungsten carbide, or in select cases, diamond.

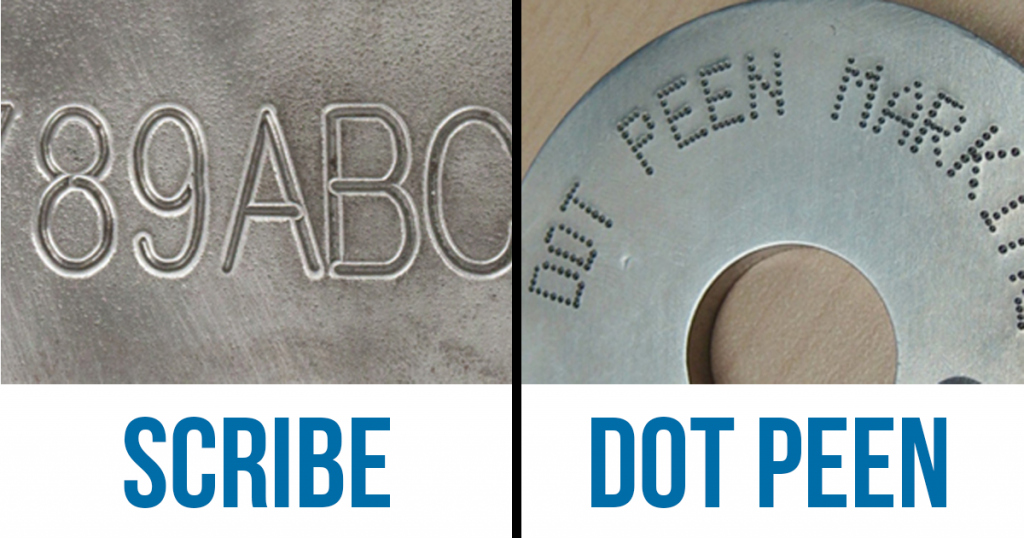

Compared to dot peen, which forms characters by creating a series of individual dots, scribe marking produces a clean, readable mark with no visible spacing between dots. And unlike laser marking, which applies heat to the material (creating a heat-affected zone, or HAZ), scribing does not, making it great for applications where material integrity must be preserved.

Several factors may impact mark quality, including:

• Surface smoothness and levelness
• Air pressure
• Part hardness
• Pin sharpness and standoff distance
• Rigidity of the fixturing

When to Use Scribe Marking

Scribe marking is highly effective on metals and steel components. It’s often used in industries such as oil and gas, power generation, automotive – especially for applications like VIN marking – or wherever permanent identification is essential and parts often undergo post-processing like painting or coating.

But one of the biggest advantages of scribe marking is noise control. With an average volume of 64 dBA on aluminum tubing, MECCO’s Scribe Marking Machine operates up to 30% quieter than U.S. standards. This makes them ideal for facilities with safety or training concerns, or for companies operating in the EU, which has much stricter noise regulations.

Case Study: Power Industry Application

A customer in the power industry came to MECCO with several marking challenges. Operators were struggling to achieve consistent, legible marks. The marks often fell in the wrong location, needed reworking due to a misprint, and weren’t deep enough to stay legible after paint.

They had previously explored dot peen marking but preferred a quieter solution. A lower-noise option would eliminate the need for hearing protection in a work environment with high turnover and mandatory safety training.

MECCO provided sample marks and video demos to walk the customer through the process. The scribe system met their target cycle time, produced marks that passed quality checks – even after painting – and addressed the company’s noise concerns. Confident in the solution, the company moved forward with implementing the system.

MECCO’s Scribe Marking Systems

MECCO offers three scribe configurations, all designed for integration into high-volume production environments:

• SUPERFAST: A compact model specially designed to be integrated into production lines, especially when space is limited.
• STANDARD: Creates marks up to 0.2mm deep with fast, reliable performance across a range of materials.
• SERVOMOTOR: Delivers the deepest marks possible (up to 0.5mm), with servo-controlled, high-speed precision for the most demanding applications.

All models are designed for high reliability and fast integration, with maintenance requirements similar to MECCO’s dot peen systems.

Read: How to Maintain Your Dot Peen Machine for a Longer Life

Is Scribe Marking Right for Your Business?

If your application involves marking metal components, especially hollow or tubular parts, a scribe marking system may work for you. Consider scribing if you:

• Need a quieter marking system for a safer environment or to meet noise standards.
• Require deep, readable marks that survive coating or surface treatment.
• Want a smoother, more aesthetic solution for logos, branding, or custom marks.

Scribe marking offers a combination of precision, durability, and quiet performance that makes it a smart choice for many industrial marking needs. MECCO’s systems are trusted across industries to deliver consistent results, even in challenging environments.
